Description

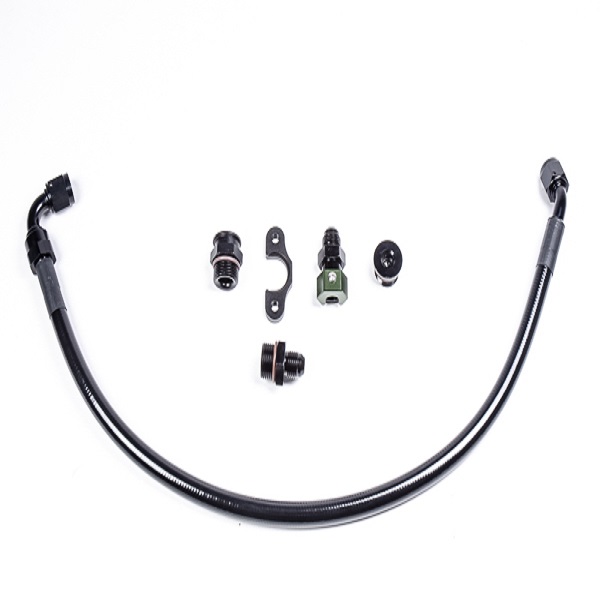

This option includes everything shown in the picture below and allows easy hookup to the factory feed line and re-uses the factory fuel pressure regulator.
-1x 20-0290 5/16in SAE to 6AN Male fitting to adapt the incoming fuel line to 6AN male near the firewall.
-1x Pre-fabricated 24″ long 6AN PTFE hose with 45deg and 90deg swivel ends is included to replace the OEM fuel line.
-1x 14-0151 8AN ORB to 6AN Male Fitting to adapt the 6AN hose to fuel rail inlet port.
-1x 20-0301 FPR Adapter is included for the outlet port permitting the reuse of the OEM pressure regulator.
-1x 14-0150 8AN ORB Plug is included for the top port.
